Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine

Product Categories
ZHEJIANG ONEPAPER SMART EQUIPMENT CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

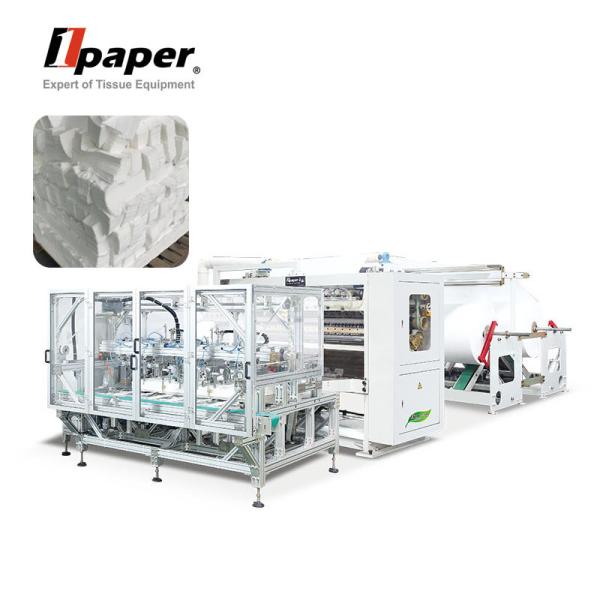

Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine

Applicable Industries : Manufacturing Plant, Other

Showroom Location : None

Condition : New

Type : Paper Folding Machine

Computerized : Yes

Place of Origin : Zhejiang, China

Brand Name : ONEPAPER

Voltage : 380V

Dimension(L*W*H) : 1170*901*1300cm

Weight : 5000 kg

Warranty : 1 Year

Production Capacity : 120m/min

Key Selling Points : High Productivity

Max. workable width : 1100mm

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC

PLC Brand : GIPENG, Schneider, DELTA, AMSAMOTION, Siemens

Machine for : Facial Tissue

Folded size : 175-210mm

Folding Speed : ≤120m/min

Machine noise : ≤80dB

Air supply : 0.5-0.8Mpa

Air consumption : 120-160L/min

After-sales Service : Video technical support

After-sale service : Service commitment

Certification : CE

Keyword : drawing facial tissue machine

Packaging Details : Facial tissue paper log saw cutting folding packing making and packaging machine paper automatic cutting

Port : ningbo shanghai

Supply Ability : 20 Set/Sets per Month

Price : $70,000.00/sets 1-1 sets

Contact Now

Facial Tissue Making Machine High Speed Automatic Facial Tissue Napkin Folding Machine
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
Product Description
Product name
Facial tissue folding machine
Item/model
F1 SERIES
Folding form
V-fold
Standing roll
2 standards can be added according to customer requirements
Max diameter of jumbo roll
1500mm
Inner diameter of jumbo roll
Around 3 inches
Jumbo roll basis weight
12-16g/m²(2 layers),18-22g/m²(1 layer)wood pulp paper,35-80 square meters of non-woven fabric (1 layer)
Folded size
Customized within the scope according to customer requirements
Folding speed
≤120 m/min
Fan power
18.5KW, This power is the data of 6-line machine)
Total power
22.5KW, This power is the data of 6-line machine)
Power supply type
Three-phase four-wire 380V 50Hz
Machine noise
≤80dB
Air supply
0.5-0.8MPa
Air consumption
120-160L/min
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
Automatic Facial Tissue Folding Machine
Adopting votage stabilization technology, the fan is equipped with a frequency converter, an the air volume should be automatically adjusted when the folding speed is required, which can save 30% of evergy.
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine

high speed folding facial tissue machine

Using a new type of standing roller, no need to set shafts, pneumatic paper loading, greatly reduce labor intensity and paper change time.
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine

packing v fold facial tissue production line

Adopt a new type of adsorption to effectively improve the adsorption performance and increase the folding speed of materials with poor adsorptivety.
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine

packing v fold facial tissue production line

Fully automatic conveying, compare to the semi aoto folding amchine, it can largely reduce labor costs and be more efficient.
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine

High Speed Facial Tissue Folding Machine

Servo tracking and unwinding is used to control the tension, so that the folding effect is beter and the size is more accurate.
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
High Speed V Fold Facial Tissue Production Line Automatic Facial Tissue Folding Machine
Company Profile
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
Exhibition
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
Packing & Delivery
Air Supply 0.5-0.8Mpa High Speed Automatic Z Folding Napkin Making V Folder Machine
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: How about the after sales service?
A: We have a strong team for after sales services. We have 1 year warranty for all the machines

Q: Are you a factory or a trading company?
A: We're a manufacturer specializing in tissue equipments and packaging machines.

Q: Where's your factory? How can I visit it?
A: We're in Wenzhou city, Zhejiang province,China .You can fly to Wenzhou, and we'll pick you up at the airport.

Q: How does your factory do regarding quality control?
A: Quality is our main topic, it's the basement of a company's development. We've passed the GMP certification, CE certification, ISO9001 International Quality Control System Certification.

Q: What information should,provide in order to get a quotation?
A: -Dimension of your products(Lengths Width"Height)
-The requirements of speed
-Dimension of your package(Length*Width*Height)
